MKZ-05 Thread RTD

threaded
Common thread :M6, M8, M8*1.25, M10, M10*1.25, M12

Ask A Quote

Performance Parameter

Performance Parameter
Product Name	MKZ-05 Thread RTD
Index Number	PT100 PT1000
Temperature Range	-50-200℃(Three Core Tetrafluorowire) -50-400℃(Metal Shielded Wire)
Lead Material	Three core PTFE silver plated shielding wire, metal shielding wire
Lead Length	On-demand customization
Protective Tube Material	SS304/316L stainless steel
Connection Mode	Default U-shaped terminal (pin, bare wire can be customized)
Common Thread Specification	M6、M8、G1/2、G1/4(customizable)
Accuracy Level	1/10B 1/3B A B 2B

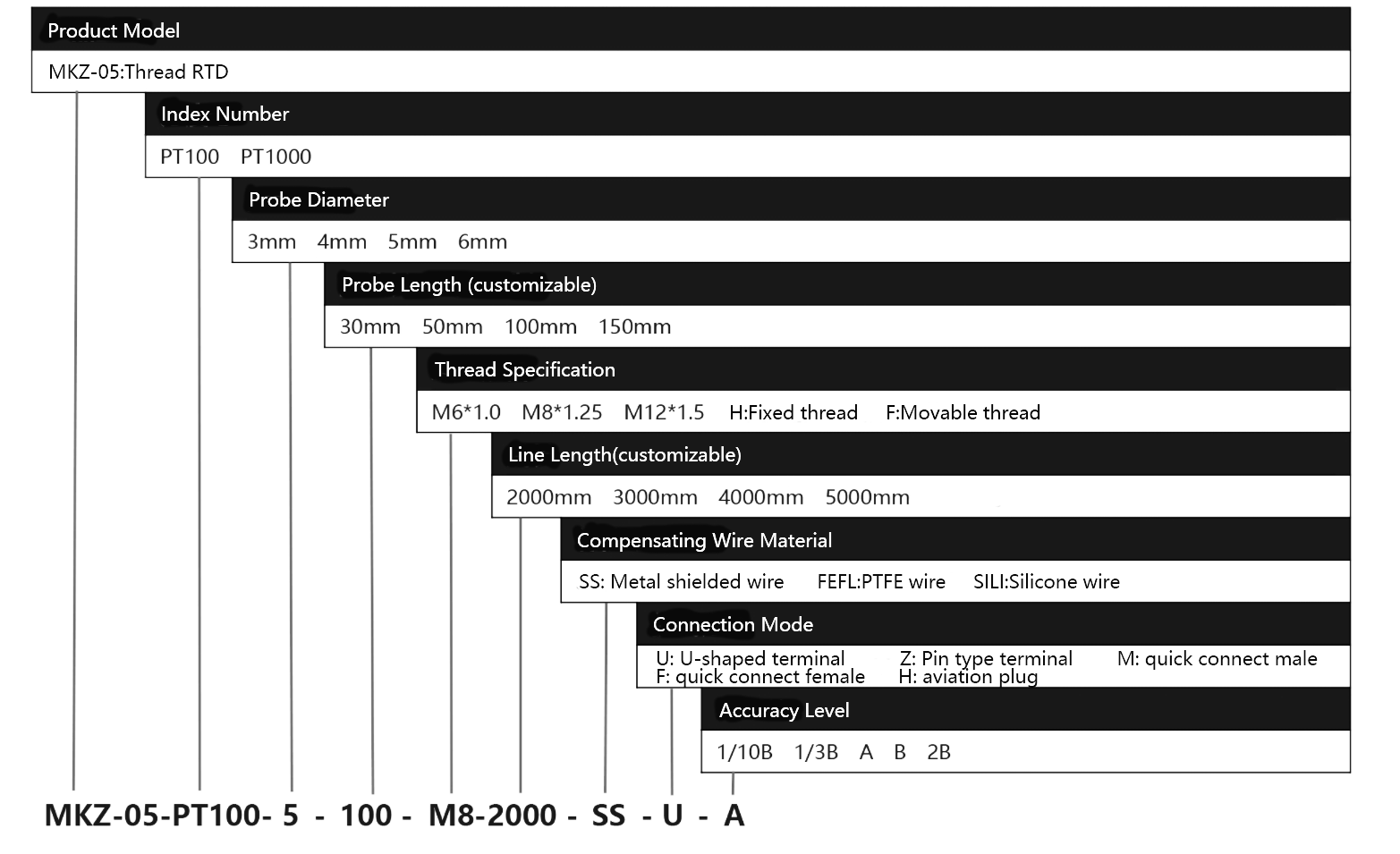

Selection
