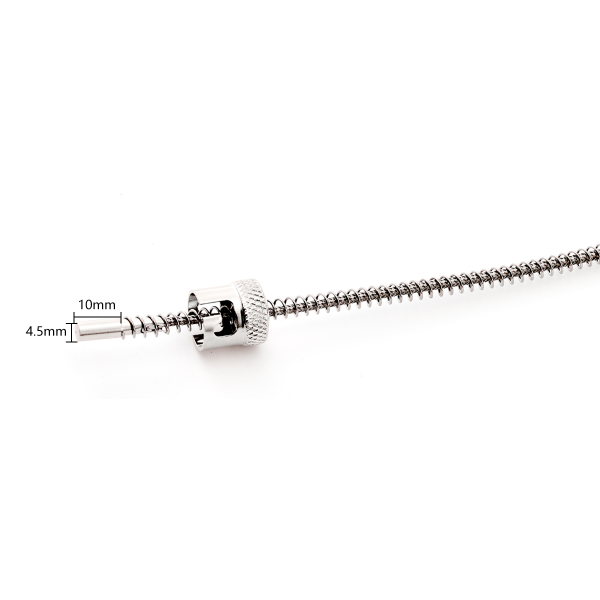

MKZ-04 Buckle RTD

clip-on
Optional sleeve thread M8*1.25/M10*1.5/M12*1.5
Adjustable buckle diameter 12mm

Ask A Quote

Product Description

Performance parameter

Performance Parameter
Product Name MKZ-04 Buckle RTD
Index Number PT100   PT1000
Temperature Range -50-200℃(Three Core Tetrafluorowire)
-50-400℃(Metal Shielded Wire)
Lead Material Three core PTFE silver plated shielding wire, metal shielding wire
Lead Length On-demand customization
Minimum Depth ≥20mm, except special products
Process Connection Stainless steel, buckle connection M12*1
Protective Tube Material SS304/316L stainless steel
Connection Mode Default U-shaped terminal (pin, bare wire can be customized)
Accuracy Level 1/10B   1/3B    A    B   2B

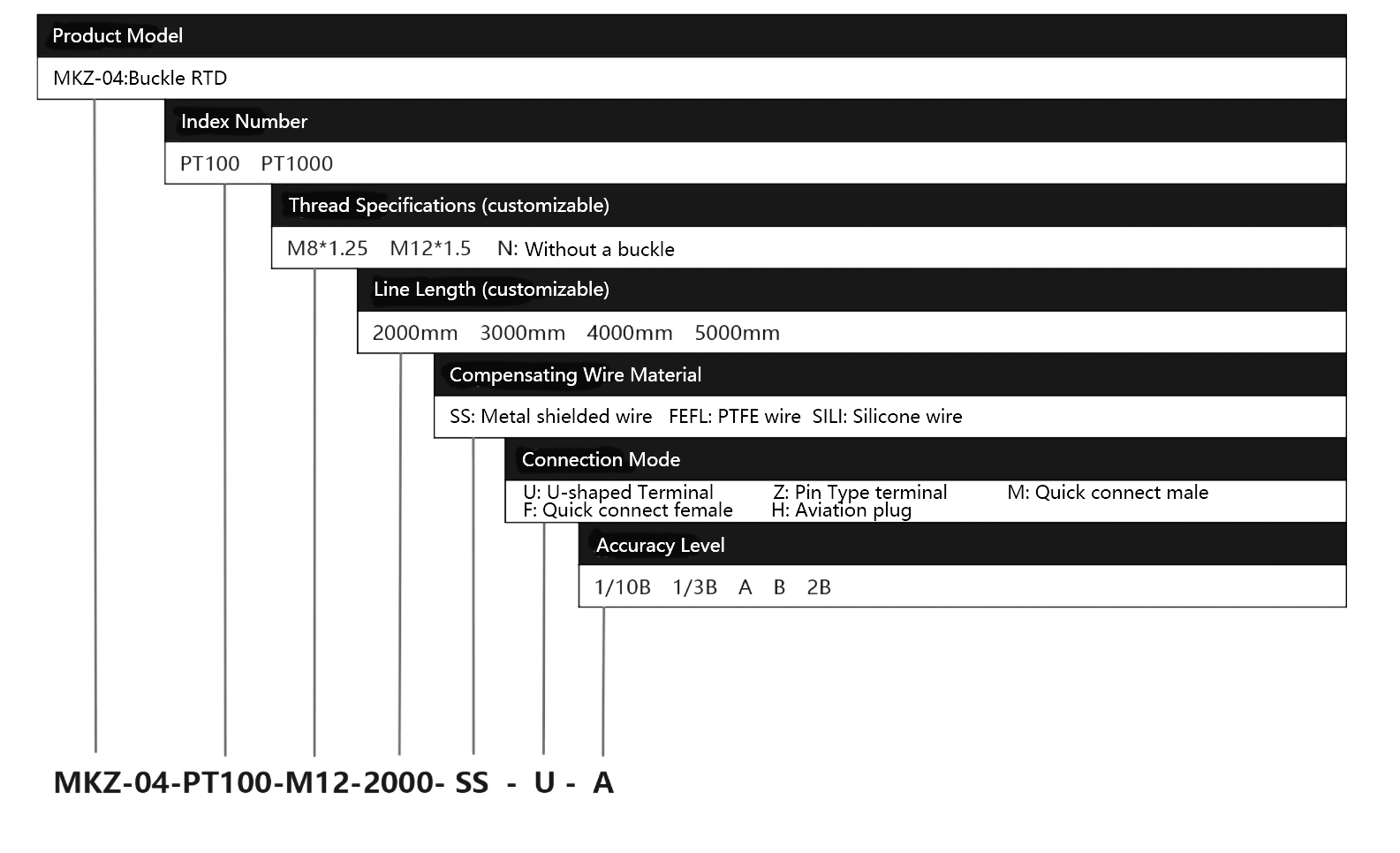

Selection
