MKZ-02 Pressure Reed RTD
Compression spring type
Small steel pipe + threaded sleeve + spring + fixed clip
Product Description
Performance Parameter
| Performance Parameter | |
| Product Name | MKZ-02 Pressure Reed RTD |
| Index Number | PT100 PT1000 |
| Temperature Range | -50-200℃(Three Core Tetrafluorowire) -50-400℃(Metal Shielded Wire) |
| Lead Material | Three core PTFE silver plated shielding wire, metal shielding wire |
| Lead Length | On-demand customization |
| Protective Tube Material | SS304/316L stainless steel |
| Probe Specification | M12*1.5(Customizable) |
| Connection Mode | Default U-shaped terminal (pin, bare wire can be customized) |
| Accuracy Level | 1/10B 1/3B A B 2B |

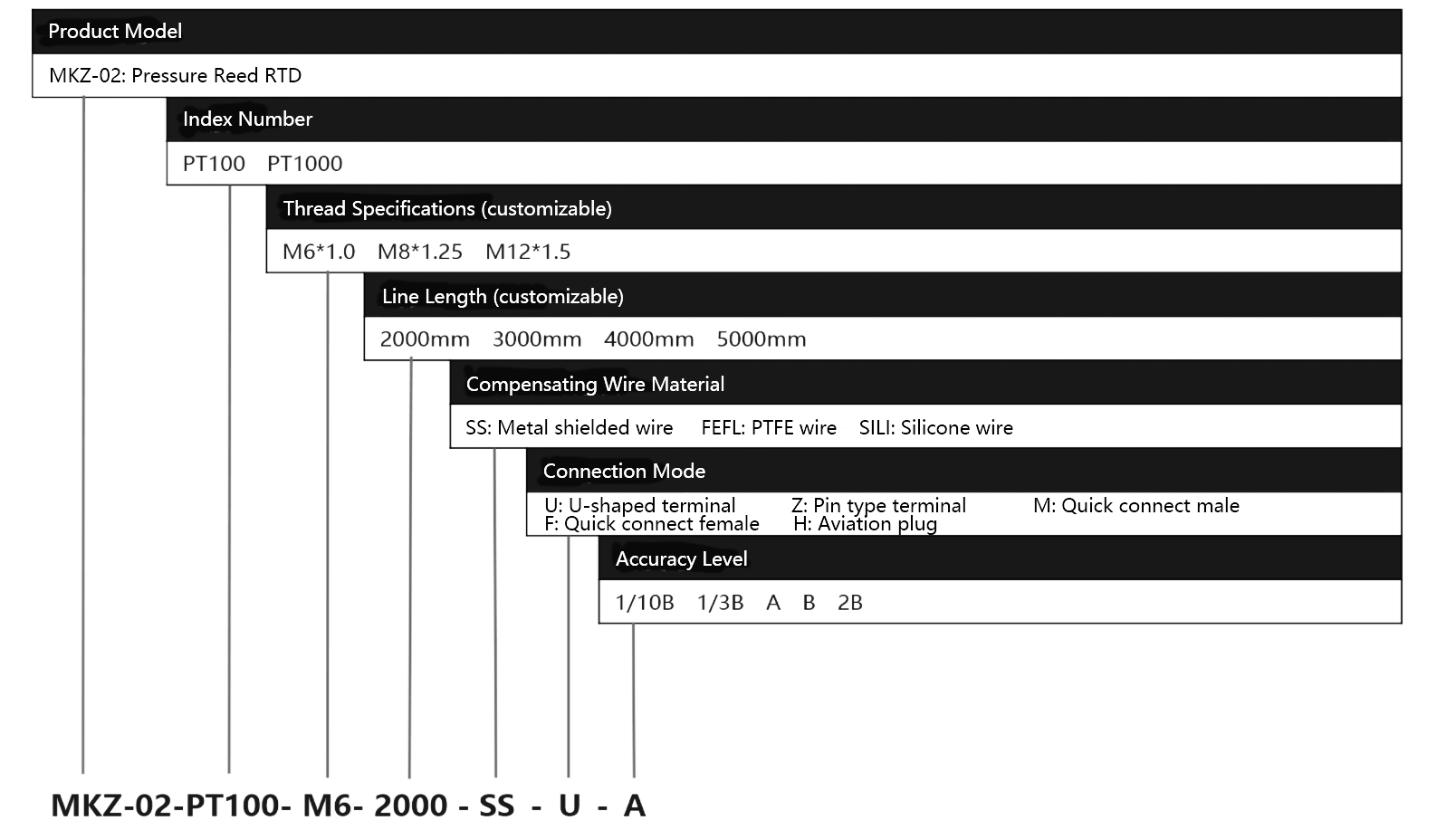

Selection
