MKZ-01 Screw RTD

Copper thread, fast heat conduction, more accurate temperature measurement

Ask A Quote

Performance Parameter

Performance Parameter
Product Name	MKZ-01 Screw RTD
Index Number	PT100 PT1000
Temperature Range	-50-200℃(Three Core Tetrafluorowire) -50-400℃(Metal Shielded Wire)
Lead Material	Three core PTFE silver plated shielding wire, metal shielding wire
Lead Length	On-demand customization
Protective Tube Material	copper

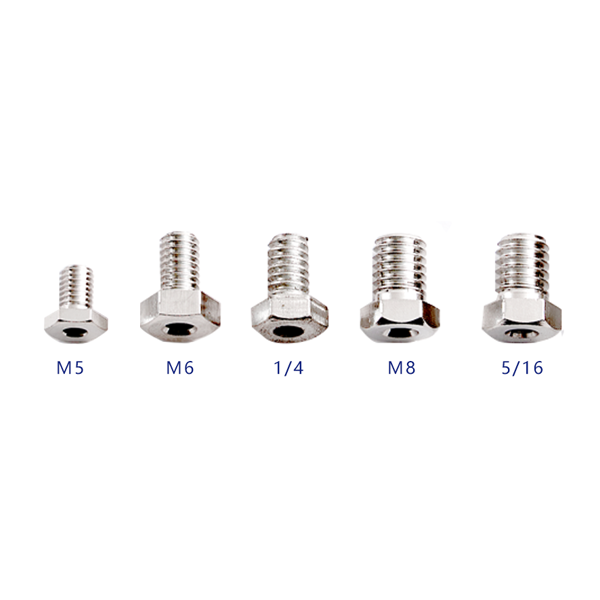

Probe Specification	Default M6 metric screw (customizable)
Connection Mode	Default U-shaped terminal (pin, bare wire can be customized)
Accuracy Level	1/10B 1/3B A B 2B

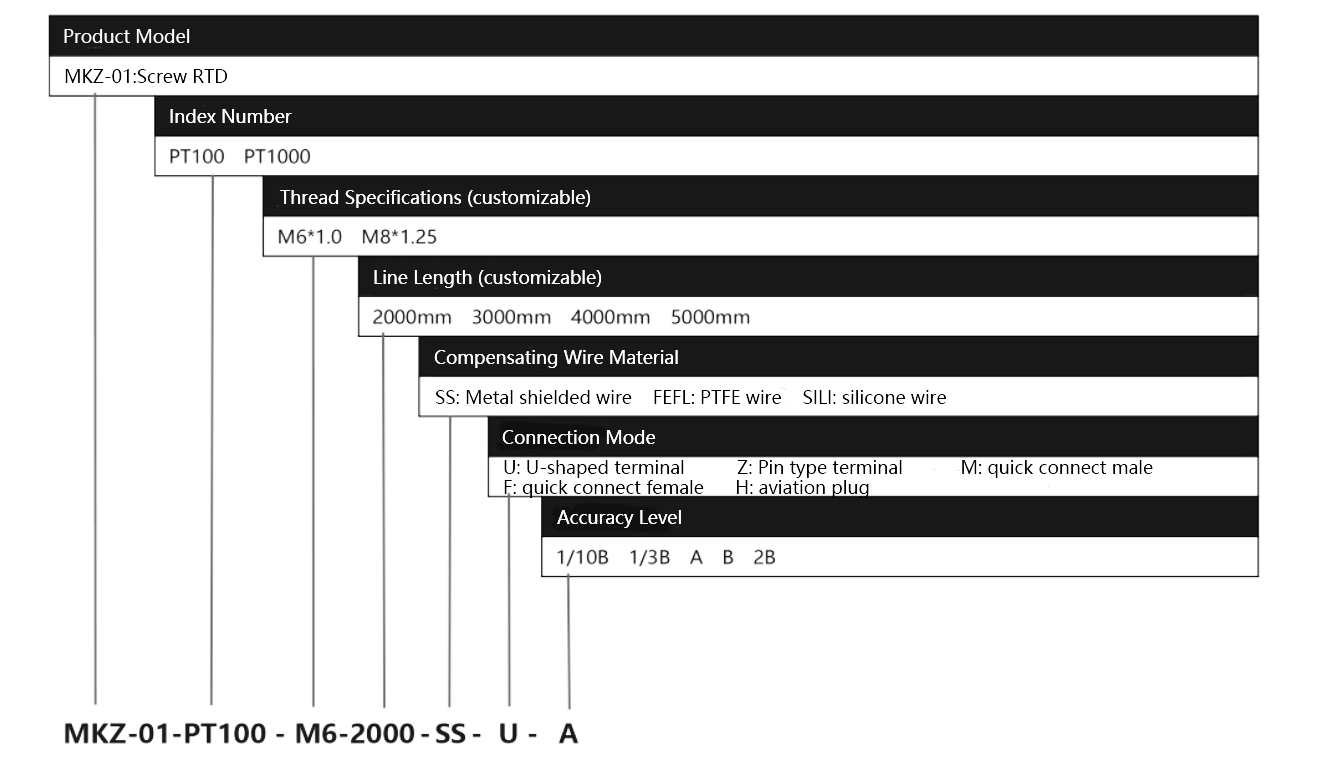

Selection
