MKP-610 Display Pressure Transmitter
■ 316L stainless steel isolation diaphragm construction
■ High precision, all stainless steel structure
■ Small size, light weight
■ Strong anti-interference, good long-term stability
■ Diversified form structure, easy to install and use
■ Wide range, can measure the absolute pressure, gauge pressure and sealing pressure
■ Vibration and shock resistance
■ Digital display
Product Description
Performance Parameters
Measurement Range | 0.1MPa~60MPa |
Pressure Type | Gauge Pressure, Absolute Pressure, Sealing Pressure |
Power Output | 4~20mA、0~5V、0~10V(12~30VDC); 0.5~4.5V R/M(5VDC) |
Precision | ±0.5%FS |
Temperature Drift | 1.5%FS(-20℃~85℃) |
Operating Temperature | -40℃~125℃ |
Casings | Stainless steel 304 |
Temperature Compensation | -10℃~70℃ |
Display Screen | LCD liquid crystal display |
Long Term Stability | 0.2%F5/year |
Protection Level | IP65 |
Range Selection
Range Code | Pressure Type | Measurement Range | Overload Pressure | Burst Pressure |
35k | G、A | 0~35kPa | 300%FS | 600%FS |
70k | G | 0~70kPa | 300%FS | 600%FS |
100k | G、A | 0~100kPa | 200%FS | 500%FS |
250k | G、A | 0~250kPa | 200%FS | 500%FS |
400k | G、A | 0~400kPa | 200%FS | 500%FS |
600k | G、A | 0~600kPa | 200%FS | 500%FS |
1M | G、A、 S | 0~1MPa | 200%FS | 500%FS |
1. 6M | G、 S | 0~1. 6MPa | 200%FS | 500%FS |
2. 5M | G、 S | 0~2. 5MPa | 200%FS | 500%FS |
4M | S | 0~4MPa | 200%FS | 400%FS |
6M | S | 0~6MPa | 200%FS | 400%FS |
10M | S | 0~10MPa | 200%FS | 400%FS |
16M | S | 0~16MPa | 200%FS | 400%FS |
25M | 6 | 0~25MPa | 150%FS | 400%FS |
40M | S | 0~40MPa | 150%FS | 300%FS |
60M | 5 | 0~60MPa | 150%FS | 300%FS |
100M | S | 0~100MPa | 150%FS | 300%FS |
(-100~0)k | omit | -100~0kPa | 300kPa | 600kPa |
(0~-100)k | omit | 0~-100kPa | 300kPa | 600kPa |
NP100k | omit | -100~100kPa | 300kPa | 600kPa |
Note:G Gauge Pressure, A Absolute Pressure, S Seal Pressure

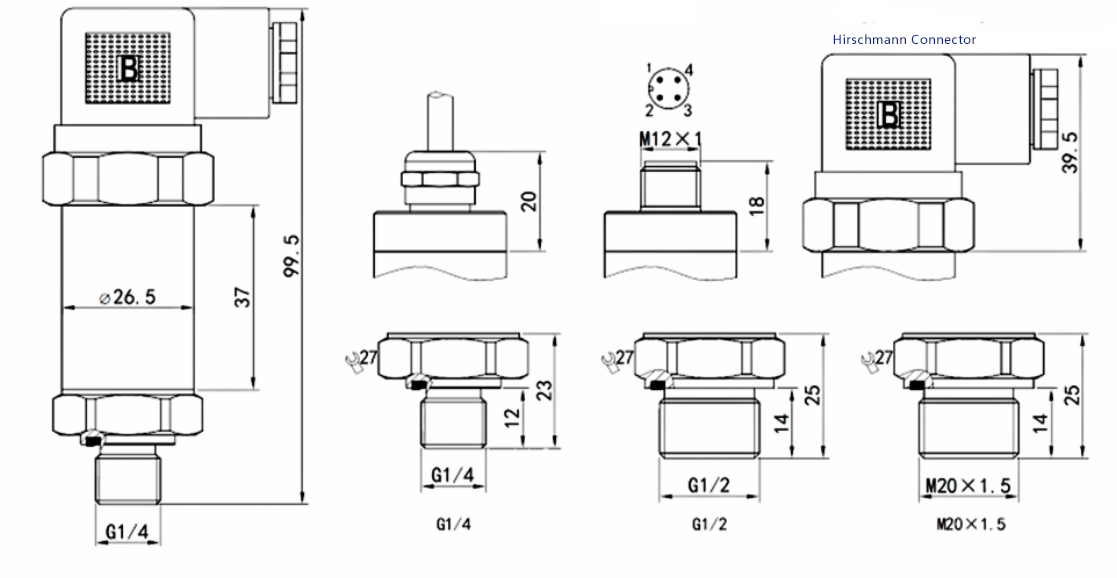

External Dimensions
Unit: mm
