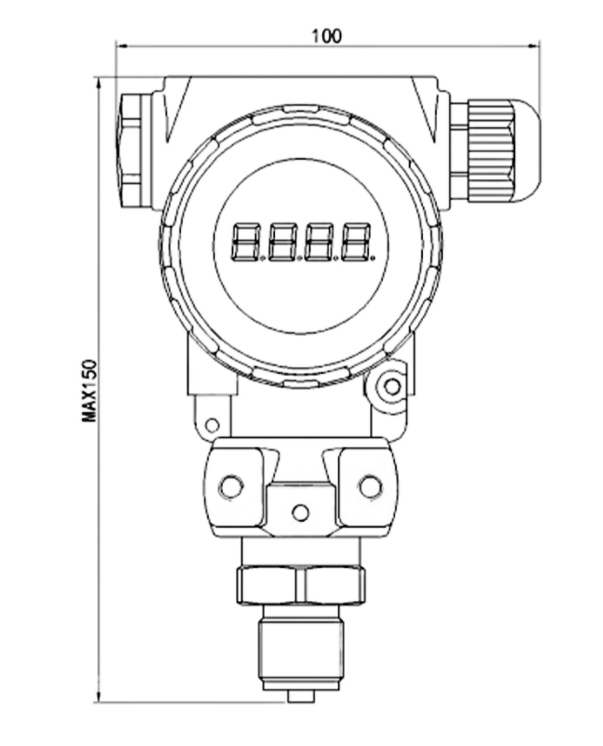

MKP-410 Explosion-Proof Digital Pressure Transmitter

■Use of high-performance diffusion silicon piezoresistive sensors
■For pressure measurement of gases, liquids and other media
Measurement
■Wide pressure range
■Digital display can be selected
■Multiple output signals can be selected
■Digital display

Ask A Quote

Product Description

Performance Parameters

Measurement Range	0.1MPa~60MPa
Pressure Type	Gauge Pressure, Absolute Pressure, Sealing Pressure
Power Output	4~20mA、0~5V、0~10V(12~30VDC); 0.5~4.5V R/M(5VDC)
Precision	±0.5%FS
Operating Temperature	-20℃~85℃
Medium temperature	-20℃~85℃
Diaphragm Material	Stainless steel 316L
Casings Material	Low Copper Aluminum Alloy
Display Screen	LCD liquid crystal display
Explosion-Proof Grade	Exia Ⅱ CT6
Protection Level	IP65

Range Selection

Range Code	Pressure Type	Measurement Range	Overload Pressure	Burst Pressure
10kG	G	0~10kPa	300%FS	600%FS
20kG	G	0~20kPa	300%FS	600%FS
35kG	G	0~35kPa	300%FS	600%FS
70kG	G	0~70kPa	300%FS	600%FS
100kG	G	0~100kPa	200%FS	500%FS
160kG	G	0~160kPa	200%FS	500%FS
250kG	G	0~250kPa	200%FS	500%FS
400kG	G	0~400kPa	200%FS	500%FS
600kG	G	0~600kPa	200%FS	500%FS
1MG	G	0~1MPa	200%FS	500%FS
100kA	A	0~100kPa	200%FS	500%FS
160kA	A	0~160kPa	200%FS	500%FS
250kA	A	0~250kPa	200%FS	500%FS
400kA	A	0~400kPa	200%FS	500%FS
600kA	A	0~600kPa	200%FS	500%FS
1MA	A	0~1MPa	200%FS	500%FS
1. 6MS	S	0~1. 6MPa	200%FS	500%FS
2. 5MS	S	0~2. 5MPa	200%FS	500%FS
6MS	S	0~6MPa	200%FS	400%FS
10MS	S	0~10MPa	200%FS	400%FS
16MS	S	0~16MPa	200%FS	400%FS
25MS	S	0~25MPa	150%FS	400%FS
40MS	S	0~40MPa	150%FS	300%FS
60MS	S	0~60MPa	150%FS	300%FS
